The 0.5W White 2835/3030 SMD LED is a high-power light-emitting diode used in various lighting applications. These LEDs are small, surface-mounted devices that offer superior performance and energy efficiency compared to traditional lighting sources.
The 2835/3030 refers to the size of the LED chip, with the 2835 being slightly smaller than the 3030. The white color produced by these LEDs is achieved through phosphor coating on the blue diode. This allows for a more efficient conversion of electrical energy into light, resulting in less power consumption and longer lifespan.
The 0.5W rating indicates the amount of power required to operate the LED, with lower wattage meaning greater energy efficiency. Despite its low power consumption, the 0.5W White 2835/3030 SMD LED is capable of producing bright, white light with a color temperature ranging from 1700K to 10000K.
These LEDs are commonly used in indoor and outdoor lighting applications such as downlights, ceiling lights, streetlights, and automotive lighting. They are also suitable for use in displays, backlighting, and signage.
Overall, the 0.5W White 2835/3030 SMD LED offers a reliable and cost-effective solution for a wide range of lighting applications, providing exceptional performance and longevity while reducing energy consumption and environmental impact.

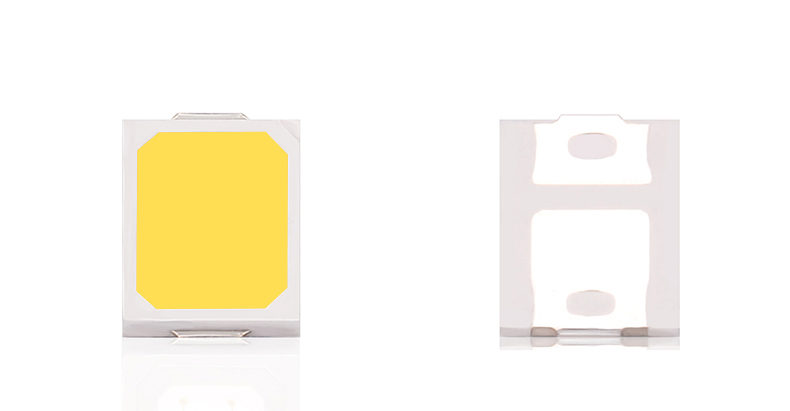

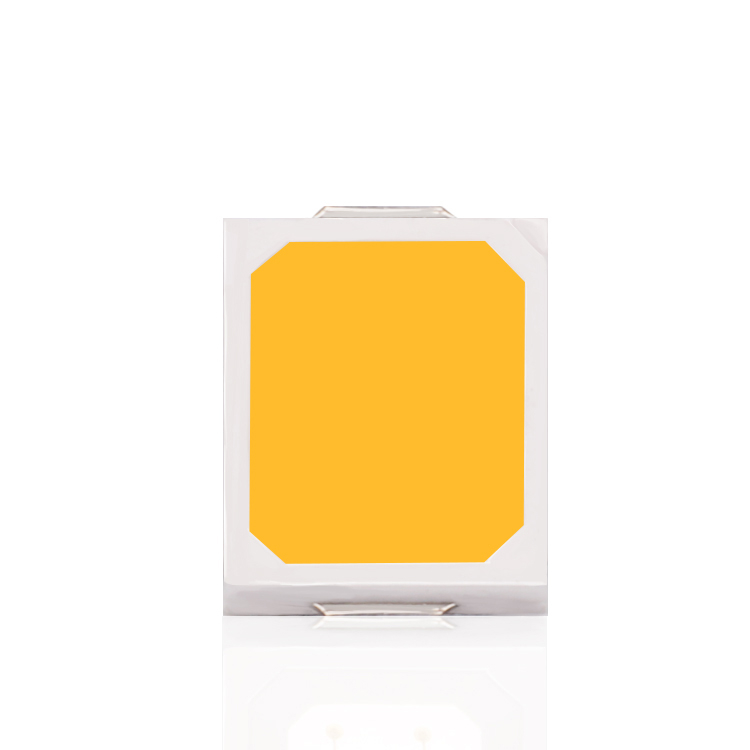

2835

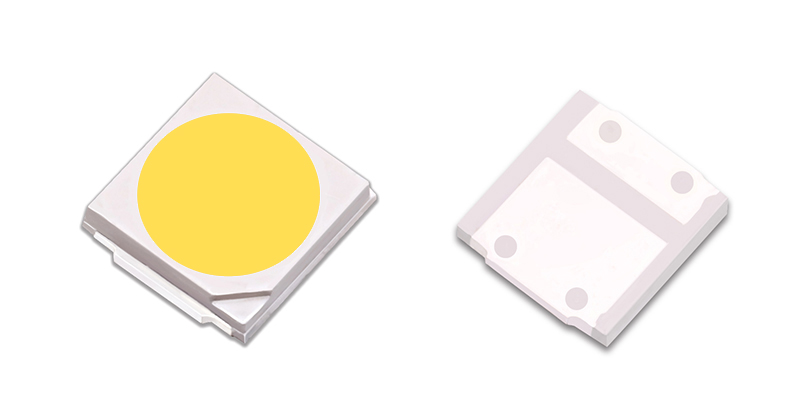

3030
2835 Dimension 3030 Dimension
Notes:
1. All dimensions are in millimeters.
2. Tolerance is ±0.1mm unless otherwise noted.
3. It can also be made to 5050/5054 specifications.
| Part No | Power(W) | CCT(K) | Luminous Flux(lm) | Voltage(V) | Current(mA) |
| JH-2835W12JC2639-T10A-B1 | 0.5 | 4000-10000 | 60-70 | 2.8-3.2 | 150 |
| JH-2835W12JC2639-T10A-D3 | 0.5-1 | 4000-10000 | 150-180 | 2.8-3.2 | 300 |
| JH-2835WW12JC2639-T10A-B1 | 0.5 | 1700-4000 | 50-60 | 2.8-3.2 | 150 |
| JH-2835WW12JC2639-T10A-D3 | 0.5-1 | 1700-4000 | 130-150 | 2.8-3.2 | 300 |
2. If you need other power, you can customize it.
Product application
Car lights, street lamps, indicator lights, wall wash lights, flashlights, indoor lighting, commercial lighting, etc
