An RGB Module is a device used to control the color of an LED display. It is a combination of three components: red, green and blue light. By adjusting the intensity of each component, the RGB Module can produce almost any color imaginable. With modern technology, this type of module is becoming increasingly popular for use in home lighting applications and even in some commercial applications such as stage lighting. In this article, we will explore what an RGB Module is from a technical perspective and explain its working principle.
What is an RGB Module?
The Different Types of RGB Modules
The Working Principle of RGB Modules

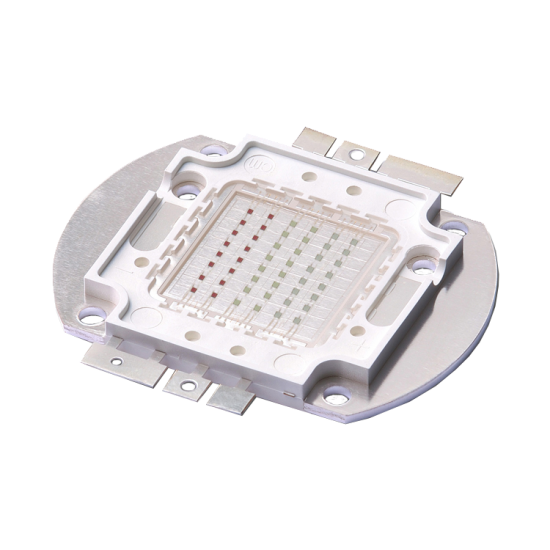

An RGB Module is a device that uses light emitting diodes (LEDs) to produce visible light in a variety of colors. The module can be used to create colorful lighting effects, or to provide color information for electronic displays.
RGB Modules typically consist of three LEDs, one each for the red, green, and blue color components. By varying the intensity of the three colors, a wide range of colors can be produced. In some cases, additional LEDs may be present to produce white light, or other colors not easily produced by the three primary color LEDs.
The color output of an RGB Module can be controlled in a number of ways. Many modules include built-in microcontrollers that allow for complex color-changing patterns or animations to be created. Alternatively, the module can be controlled by an external controller, such as a computer or microcontroller board.
The brightness of the LEDS within an RGB Module is typically adjustable. This allows for a wide range of lighting effects to be created, from subtle accent lighting to powerful stage lighting.
There are three different types of RGB Modules: common anode, common cathode, and addressable.
Common anode RGB Modules have all of the LED anodes connected together, and all of the LED cathodes are connected to their own individual pins. Common cathode RGB Modules have all of the LED cathodes connected together, and all of the LED anodes are connected to their own individual pins. Addressable RGB Modules have each LED in the module controlled by its own individual chip.
Common anode and common cathode RGB Modules can be controlled with a single-color LED controller. Addressable RGB Modules require an addressable RGB controller.
An RGB Module is a semiconductor device that emits light in three primary colors: red, green, and blue. When these three colors are combined in equal proportions, the result is white light. The intensity of each color can be controlled independently, allowing for a wide range of color options.
RGB Modules work by generating electrical pulses of different frequencies. These pulses are then sent to an LED (light emitting diode) which converts them into light. The frequency of the electrical pulses determines the color of light that is emitted. For example, a pulse with a high frequency will result in blue light, while a low frequency pulse will result in red light.
The advantage of using an RGB Module over a single-color LED is that a wider range of colors can be produced. Additionally, the intensity of each color can be controlled independently, allowing for greater control over the overall brightness and hue of the light output.
