An SMD LED is a surface-mount device light-emitting diode. SMD LEDs are small, efficient, and bright. They are often used in electronic devices and displays.
The Components of an SMD LED
The Advantages of SMD LEDs
what is the meaning of using the SMD LED
What is the soldering method of 2835SMD LED?
An SMD LED is made up of several different components, each of which plays a vital role in its function. The most important component is the light-emitting diode (LED), which is responsible for converting electrical energy into visible light. Other components include a resistor, which helps to regulate the current flowing through the LED; a capacitor, which helps to store electrical energy; and a voltage regulator, which helps to maintain the voltage across the LED.
Surface-mount LEDs offer many advantages over traditional through-hole LEDs. They are smaller and more lightweight, making them ideal for use in compact electronics. SMD LEDs also have a higher packing density, so more LEDs can be placed on a given circuit board. This makes them well suited for use in high-density applications such as LED displays. Additionally, SMD LEDs typically have a lower forward voltage drop than through-hole LEDs, resulting in higher efficiency and brightness.

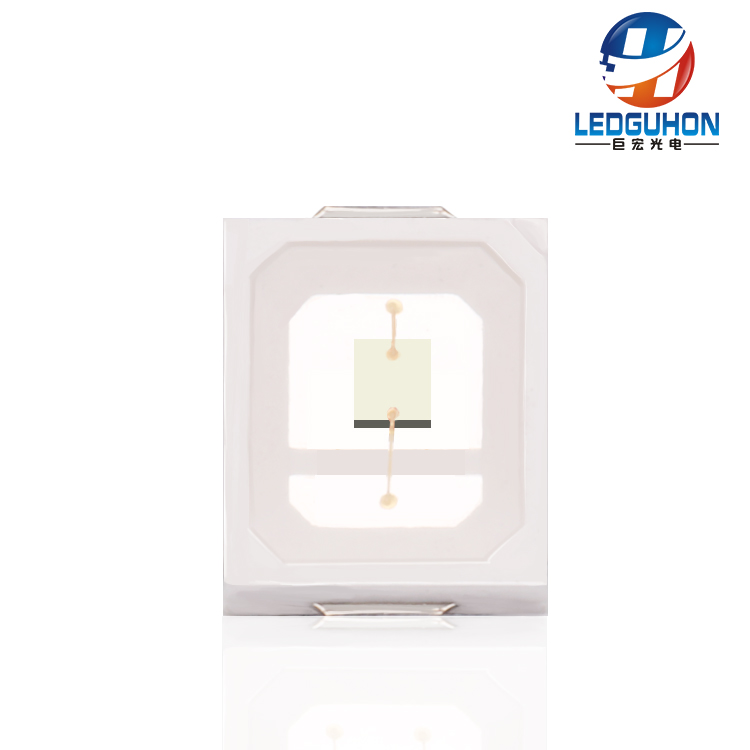

The SMD LED is a Light Emitting Diode that is used in Surface Mount Devices. When used in this context, it refers to the packaging of the diode, which is smaller than through-hole LEDs. This makes SMD LEDs ideal for use in electronic circuits where space is limited. The basic structure of the 2835SMD LED is an electroluminescent semiconductor material chip, which is cured on the bracket with silver glue or white glue, and then connected to the chip and the circuit board with silver or gold wires, and then sealed with epoxy resin around it for protection. The role of the inner core wire, and finally install the shell, so the shock resistance of the LED lamp is good.
For reflow soldering, if the aluminum substrate is used, a hot plate can also be used. The soldering iron heats the aluminum substrate, but pay attention to the speed, and remove it immediately after soldering.
False welding is prone to occur, because the led chip on the LED lamp has a false welding when welding, and the gold wire during welding is not connected properly.
Open the stencil according to different styles of light bars, the stencil and the light bar can be consistent, and choose the best solder paste.
Poor solder paste is easy to fall off when using LED lamp beads. Solder paste is printed to the position to be soldered, and then soldered by reflow soldering.
