Features
–– – – – – – – – – – – – – – – – – – – – – – –– – – – – – – – – – – – – – – – – – – – – – –– – – – – – – – – – – – – – – – – – – – – –

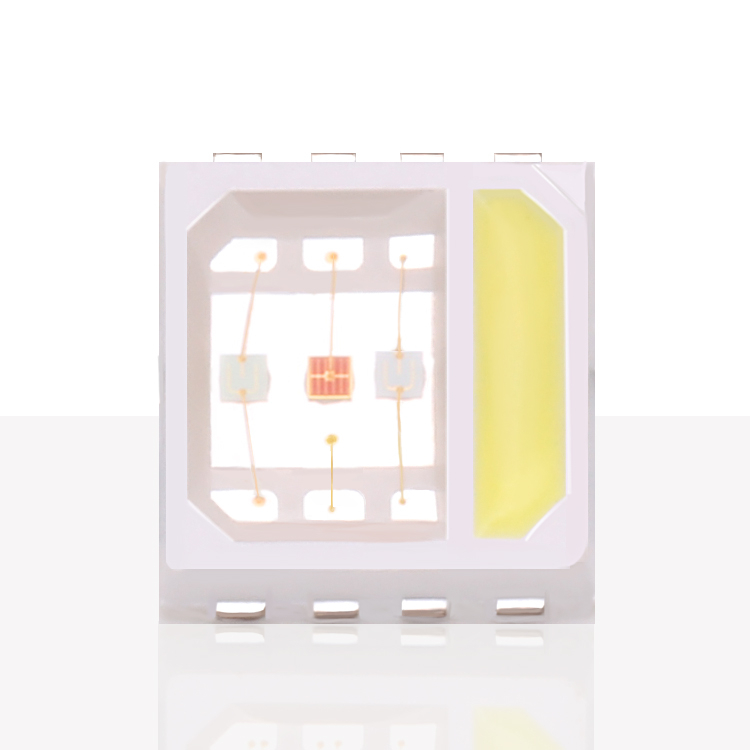

5054 SMD LED
RGBW 4in1
0.5W monochrome, 2W total
4 channel separate control
Mixing light and color is good
High brightness, High light efficiency.
Small, Convenient and Flexible.
Other Applications
–– – – – – – – – – – – – – – – – – – – – – ––– – – – – – – – – – – – – – – – – – – – – ––– – – – – – – – – – – – – – – – – – – – – –
•Commercial Lighting
•Home Lighting
•Stage Lighting
•Plant Lighting
Note：
This is a combination of RGBW SMD LED,
If you have a specific requirement for colors or wavelengths,
You can contact me,
We accept custom service.
Features
–– – – – – – – – – – – – – – – – – – – – – – –– – – – – – – – – – – – – – – – – – – – – – –– – – – – – – – – – – – – – – – – – – – – –
5054 SMD LED
RGBW 4in1
0.5W monochrome, 2W total
4 channel separate control
Mixing light and color is good
High brightness, High light efficiency.
Small, Convenient and Flexible.
Other Applications
–– – – – – – – – – – – – – – – – – – – – – ––– – – – – – – – – – – – – – – – – – – – – ––– – – – – – – – – – – – – – – – – – – – – –
•Commercial Lighting
•Home Lighting
•Stage Lighting
•Plant Lighting
Note：
This is a combination of RGBW SMD LED,
If you have a specific requirement for colors or wavelengths,
You can contact me,
We accept custom service.
Power (W)
R/G/B/W:0.5W
Single channel 0.5W
a total of 2W
Wavelength
R:620-625nm
G:520-525nm
B:460-465nm
Luminous Flux (lm)
W:50-70lm
R:15-25lm
G:30-40lm
B:5-10lm
Voltae (V)
W/B:2.8-3.2V
G:3.2-3.6V
R:2.2-2.6V
{"type":"2","json":[{"index":"0","tran_value":["JH-5054GRBW12J20-T11A"],"tran_label":"Part No."},{"index":"1","tran_label":"Power (W)","tran_value":["R/G/B/W:0.5W","Single channel 0.5W","a total of 2W"]},{"index":"2","tran_label":"Color","tran_value":["RGBW"]},{"index":"3","tran_label":"CCT (K)","tran_value":["W:6000-7000K"]},{"index":4,"tran_value":["R:620-625nm","G:520-525nm","B:460-465nm"],"tran_label":"Wavelength"},{"index":"5","tran_label":"Luminous Flux (lm)","tran_value":["W:50-70lm","R:15-25lm","G:30-40lm","B:5-10lm"]},{"index":"6","tran_label":"Voltae (V)","tran_value":["W/B:2.8-3.2V","G:3.2-3.6V","R:2.2-2.6V"]},{"index":"7","tran_label":"Current (mA)","tran_value":["R/G/B/W:150mA"]}]}
Note：

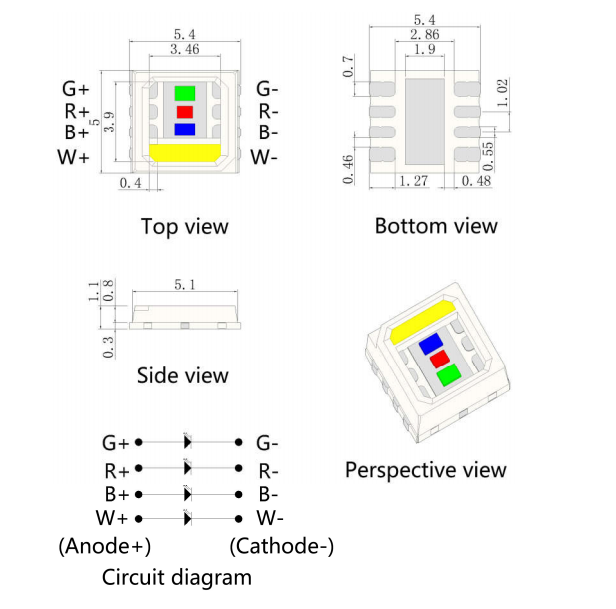

This is one of 5054 SMD the package size,
We can also make 6064 SMD and other sizes.
Of course, if you have specific needs.
Please contact customer service to communicate, maybe we can solve the problem for you.
Note：
This is one of 5054 SMD the package size,
We can also make 6064 SMD and other sizes.
Of course, if you have specific needs.
Please contact customer service to communicate, maybe we can solve the problem for you.
