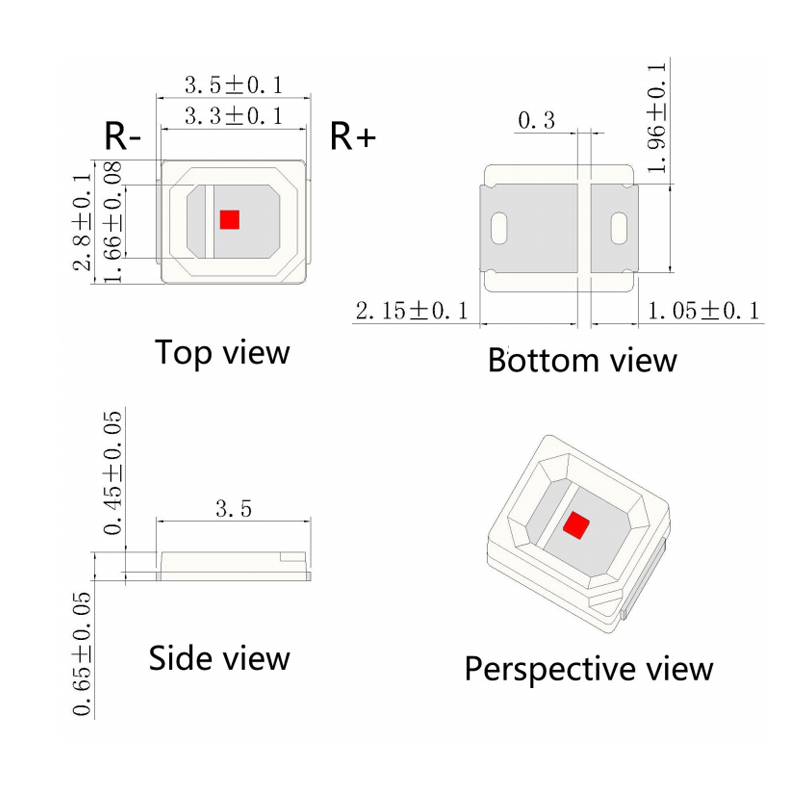

2. Tolerance is ±0.1mm unless otherwise noted.
3. 2835/3030/5050 dimensions can be made if necessary
 |
JH-2835IR12G14-P10A
LEDGUHON
| Quantity: | |
|---|---|

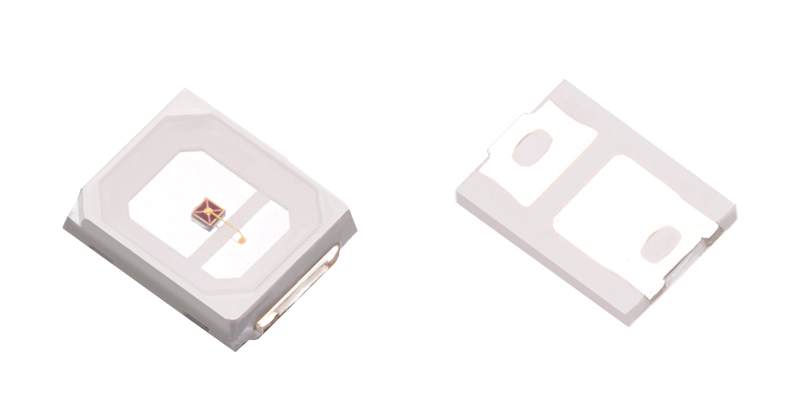

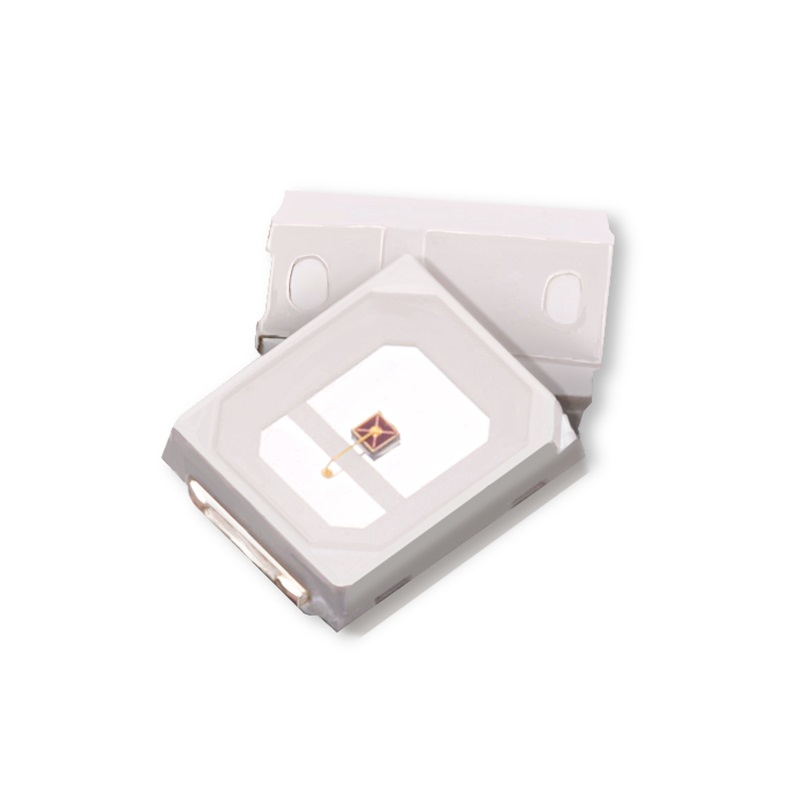

The 0.2W infrared 2835 LED is a kind of infrared emission device which is often used in the fields
of infrared communication and item identification.
This LED model uses 2835 encapsulation technology to achieve high density bead layout and strong
lighting effect.
Its power is 0.2W, the working current is generally between 30-60mA, the emission wavelength is
700nm~1530nm Optional customization.
This type of LED has the characteristics of compact, high efficiency, low power consumption, long life
and so on.
Widely used in infrared communication, security monitoring,medical beauty, infrared thermal imager,
photoelectric remote sensing, smart home and other occasions.
| 780-785nm | 25-35mW | |
| 800-810nm | 25-35mW | |
| 845-850nm | 20-30mW | |
| 935-945nm | 1.2-1.6V | 20-30mW |
| 970-980nm | 1.2-1.6V | 20-30mW |
| 1040-1050nm | 1.2-1.6V | / |
| 1220-1230nm | 1.0-1.4V | / |
| 1340-1350nm | 1.0-1.4V | / |
| 1450-1460nm | 1.0-1.4V | / |
| 15230-1530nm | 1.0-1.4V | / |
Smart home, camera, drone, smart car, medical beauty, AR,VR, etc
